MISL3 - old page

Missile Aerodynamics Prediction Software
  • High Angle of Attack
  • Angular Rates
  • Nonuniform Flow Fields
  • Body Flares and Boattails
  • Arbitrary Interdigitation between Fin Sets
  • Fast-running, engineering-level missile aerodynamics predictions for analysis and design. MISL3 efficiently predicts longitudinal and lateral aerodynamic characteristics including damping derivatives and is essential for generating aerodynamic data bases for flight simulations. Models axisymmetric bodies with up to three cruciform fin sections - fully deflectable fins. Bodies may have conical changes in body diameter - flares and boattails. Based on high resolution, high angle-of-attack, experimental data bases and advanced equivalent angle-of-attack concept.

    MISL3 (2006) is the latest version of the NEAR engineering-level missile aerodynamic prediction software, which includes the ability to handle configurations with arbitrary interdigitation between fin sets. Previous versions of this software have included M3FLR (1998), M3HAX (1996), M3F3CA (1991), MISL3 (1989), and MISSILE 3 (1986).

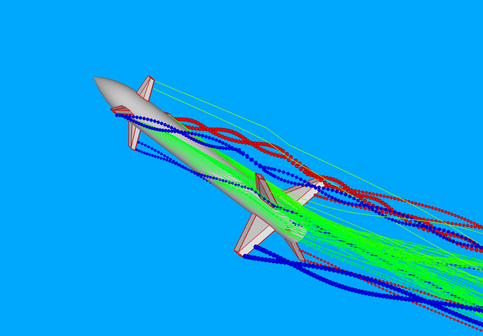

    click on image
    Applicable Configurations
    • Up to 3 fin sections
    • 1,2,3,4 or 8 fins per fin section
    • 0.25 < fin aspect ratio, AR < 10
    • 0 < fin taper ratio < 1
    • Fins with aspect ratio between 1.0 and 4.0 can be deflected (control fins)
    click on one of the options below
    Click for 3 fin set Range of Flow Parameters
    • Subsonic, transonic, supersonic Mach numbers
    • Angles of attack up to 90 deg
    • Roll angle is arbitrary
    • Fin deflection angles up to 40 deg
    • Interdigitation angles between fin sets arbitrary
    Click for Tandem Control 1
    Click for Tandem Control 2
    Click for Canard Pitch Control
    Important Modeling Features
    • Nonlinear compressibility effects at high angles of attack
    • Nonlinear effects of body and fin vortices
    • Nonlinear fin/body gap effects
    • Damping effects due to rotational rates (p,q,r)
    • Effects of user-specified nonuniform flow
    Output Options
    • Detailed output file
    • TECPLOT© compatible graphics and spreadsheet files
    • Spreadsheet compatible files
    Aerodynamic Quantities Computed
    • Overall 6-DOF forces and moments: axial, side, and normal forces rolling, pitching, and yawing moments
    • Aerodynamic Damping Coefficients due to Rotational Rates
    • Detailed axial force breakdown
    • Body load distribution
    • Fin forces and moments:
      • Fin axial and normal forces
      • Fin hinge and bending moments
    Additional Results

    MISL3 is available for PCs (Windows, linux) and most workstation computers. For maximum utility of the code, NEAR recommends a two-day training course which includes interpretation of the output and "hands-on" code running.

    Papers on MISL3 engineering-level missile aerodynamic prediction:

    • Prediction of the Nonlinear Aerodynamic Characteristics of Tandem-control and Rolling-Tail Missiles,
      Daniel J. Lesieutre, John F. Love, and Marnix F. E. Dillenius
      [available as AIAA Paper 2002-4511][PDF file, 541 KB]
    Copyright © 2002 Nielsen Engineering & Research

    • Recent Applications and Improvements to the Engineering-Level Aerodynamic Prediction Software MISL3,
      Daniel J. Lesieutre, John F. Love, and Marnix F. E. Dillenius
      [available as AIAA Paper 2002-0275][PDF file, 518 KB]
    Copyright © 2002 Nielsen Engineering & Research

    • High Angle of Attack Missile Aerodynamics Including Rotational Rates - Program M3HAX ,
      Daniel J. Lesieutre, John F. Love, and Marnix F. E. Dillenius
      [available as AIAA Paper 96-3392][PDF file, 273 KB]
    Copyright © 1996 Nielsen Engineering & Research

    • Engineering, Intermediate, and High Level Aerodynamic Prediction Methods and Applications ,
      Marnix F. E. Dillenius, Daniel J. Lesieutre, Martin C. Hegedus,
      Stanley C. Perkins, Jr., John F. Love, and Teresa O. Lesieutre
      [available as AIAA Paper 97-2278]
    Copyright © 1997 Nielsen Engineering & Research

    • Prediction of Induced Roll on Conventional Missiles with Cruciform Fin Sections ,
      Daniel J. Lesieutre, Michael R. Mendenhall, and Marnix F. E. Dillenius
      [available as AIAA Paper 88-0529]
    Copyright © 1988 Nielsen Engineering & Research

    • Aerodynamic Characteristics of Cruciform Missiles at High Angles of Attack ,
      Daniel J. Lesieutre, Michael J. Hemsch, Michael R. Mendenhall, and Susana M. Nazario
      [available as AIAA Paper 87-0212]
    Copyright © 1987 Nielsen Engineering & Research
